・Operate as movie shown.

・Compact and thin

・Output stroke perpendicular to the output stroke the piezoelectric actuator

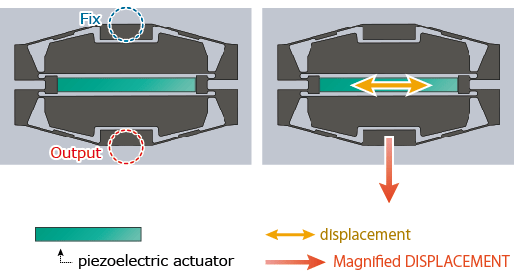

●The operating principles of MTN Series





	Piezo Element (mm)	Displacement  (μm)		Generative Force [N]	Stiffness [kN/m]	Resonance Frequency [Hz]	Electrostatic Capacitance [nF]	Price [￥]
		@100V	@150V	@100V
MTN03S50F4	2x3x10	50	80	4	81.4	1046	180	80,000
MTN04S130F5	2x3x20	130	200	5	34.9	417	350	80,000
MTN12S1000F113	10x10x80	750	1150	83	110.7	106	21600	295,000



●Application of MTN Series

3-Axis Stage
