MECHANO TRANSFORMER CORPORATION

MTDD08S300F16 [Datasheet Download]

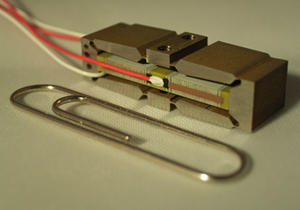

MTDD08S300F16

Specifications

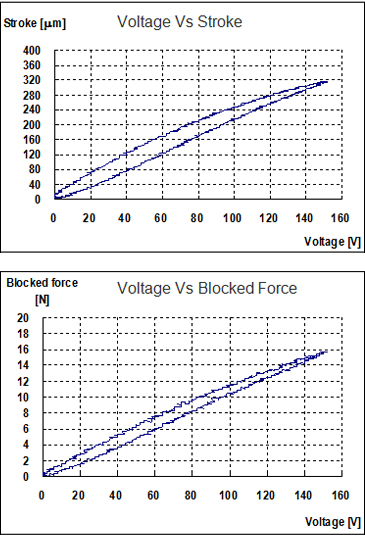

・Open-loop stroke: 300 µm @ 150V (fixed-free)
*Tolerance value: 240~350 µm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.053 N/µm
・Resonance frequency(blocked-free): 460 Hz
*Tolerance value: 400~530 Hz
・Blocked force: 16 N (*Tolerance value: 13~21N)
・Capacitance: 0.7 µF
・Dimension: 26x8x7 mm
・Mechanical interface: 2-M2 Tapped hole at both sides
・Environment : 0 to 85℃ with humidity less than 40%
・Mass: 7.6 g
*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.



Geometry
