MTDD08S180F32 [Datasheet Download]

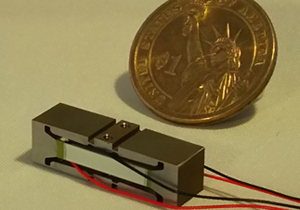

MTDD08S180F32

Specifications

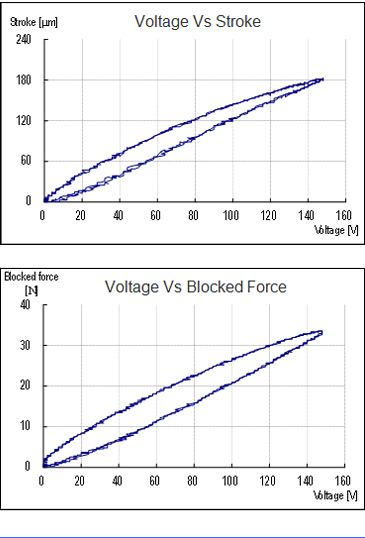

・Open-loop stroke: 180 µm @ 150V (fixed-free)
*Tolerance value: 144~216 µm
・Operating voltage:-20 V ~+150 V
・Stiffness in motion direction: 0.18 N/µm
・Resonance frequency(fixed-free): 900 Hz
*Tolerance value: 720~1080 Hz
・Blocked force: 32 N (*Tolerance value: 25.6~38.4N)
・Capacitance: 0.90 µF
・Dimension: 28x8x8 mm
・Mechanical interface: 2-M2 Tapped hole at both sides
・Environment: 0 to 85℃ with humidity less than 40%
・Mass: 9.0 g
*All dimensions and specifications stated are nominal.



Option

・Mechanical interface can be tailor with an addition option fees.

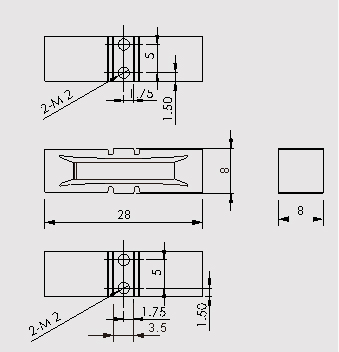

Geometry
