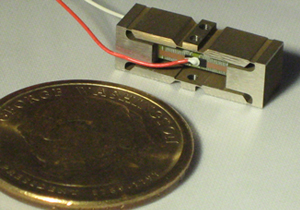

MTDD06S100F10　[Datasheet Download]

Specifications

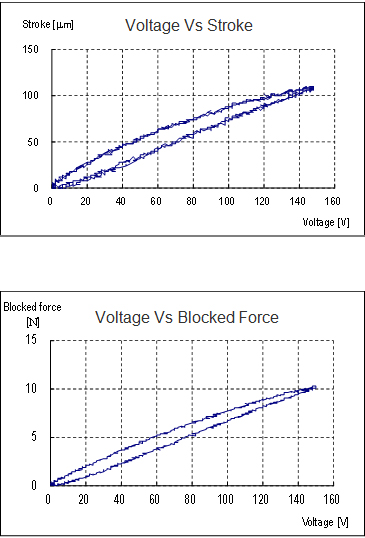

・Open-loop stroke： 100 µm @ 150V (fixed-free)
*Tolerance value: 85～130 µm
・Operating voltage：-20 V ～＋150 V
・Stiffness in motion direction： 0.10 N/µm
・Resonance frequency(fixed-free): 700 Hz
*Tolerance value: 560～840 Hz
・Blocked force: 10 N (*Tolerance value: 7.7～12.3N)
・Capacitance: 0.20 µF
・Dimension: 20x6x7 mm
・Mechanical interface: 2-M1.4 Tapped hole at both sides
・Environment： 0 to 85℃ with humidity less than 40%
・Mass: 4.2 g
*All dimensions and specifications stated are nominal.

Option

・Mechanical interface can be tailor with an addition option fees.

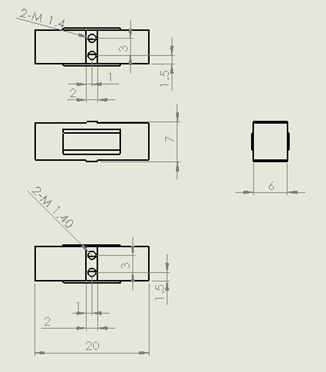

Geometry
