The displacement, force, rigidity and capacitance of the existing MechaTransR are shown in the following table;
These specification data is measured at DC100 volts as recommended by Mechano Transformer.
Fig.4 is MechaTransR map which shows the relation between the displacement and the force. It may be useful to select an optimum MechaTransR.
 |

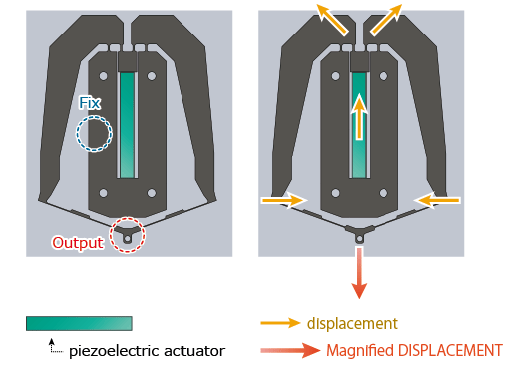

●The operating principles of MTA Series
Fig.4 Map of MechaTrans displacement and force (*Click to enlarge)
)
Table1 (*Click to enlarge)
)
《Price List》
| Price[￥] | |
| MTA01S50F1 MTA01S100F0.6 MTA01S200F0.3 |
90,000 |
| MTA02S50F5 MTA02S100F2 MTA02S200F1 |
90,000 |
| MTA02S100F4 MTA02S200F2 MTA02S400F1 |
90,000 |
| MTA02S200F4 MTA02S400F2 MTA02S600F1 |
90,000 |
| MTA02S400F7 MTA02S600F5 MTA02S800F3 |
90,000 |
| MTA05S100F13 MTA05S200F10 MTA05S400F3 |
90,000 |
| MTA05S200F12 MTA05S400F9 MTA05S600F4 |
100,000 |
| MTA05S400F26 MTA05S800F13 MTA05S1600F5 |
125,000 |
| MTA10S200F43 MTA10S400F29 MTA10S700F14 |
150,000 |
)
